Microwave

Very long distance microwave for Critical National Infrastructure

A sovereign, high-capacity radio path between countries, islands and remote sites, independent of subsea cables and quick to deploy. LiveTelco designs, licenses, installs and runs the link end to end, then watches it 24/7 from its NOC.

Why long-haul microwave

Independent of subsea cables

A second, physically separate path that keeps traffic flowing when a cable is cut or a landing station goes down.

Sovereign and controlled

A point-to-point link between two sites, with no third-party network in between and full control over routing and security.

Fast to deploy

Weeks, not years: no seabed survey or cable ship, using existing towers wherever possible.

Carrier-grade capacity

Gigabit-class throughput per link, with dual polarisation, XPIC and space diversity for stable operation over water.

Reference project

270 km point-to-point microwave link

LiveTelco installed, configured, tested and commissioned a long-distance microwave link between two points 270 km apart, mostly over the sea. The link is in operation and monitored 24/7 by the LiveTelco NOC.

antennas at both sites
3.0 m
two per antenna, vertical and horizontal polarisation with XPIC
4 radios
against multipath fading over the sea
Space diversity
stable aggregate throughput at commissioning
≈ 1.4 Gbps

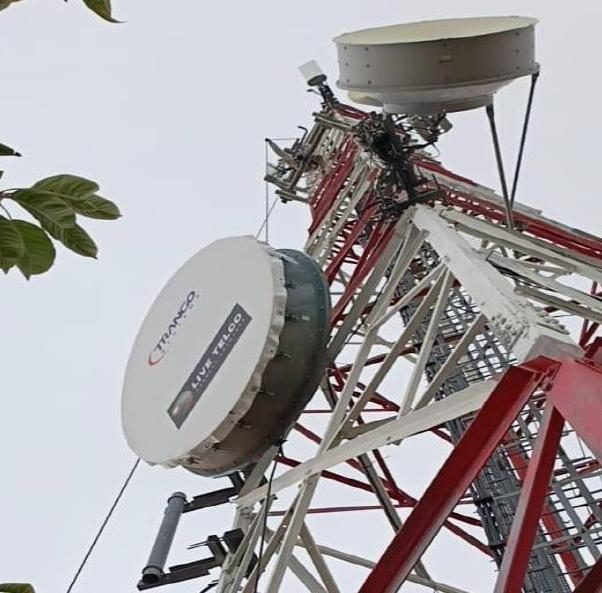

3.0 m microwave antenna on the tower
3.0 m microwave antenna on the tower

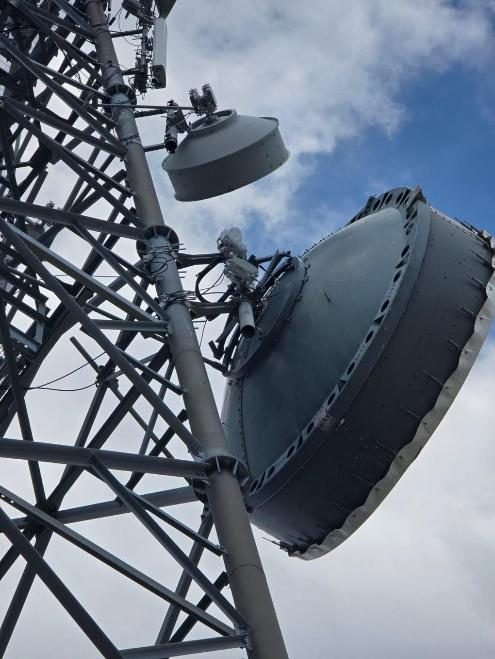

Antennas installed for space diversity
Antennas installed for space diversity

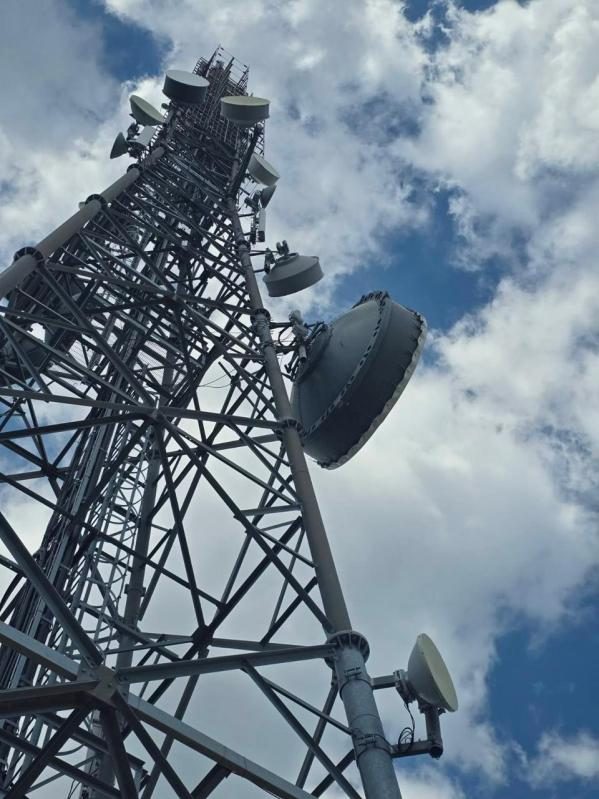

The tower carrying the link
The tower carrying the link

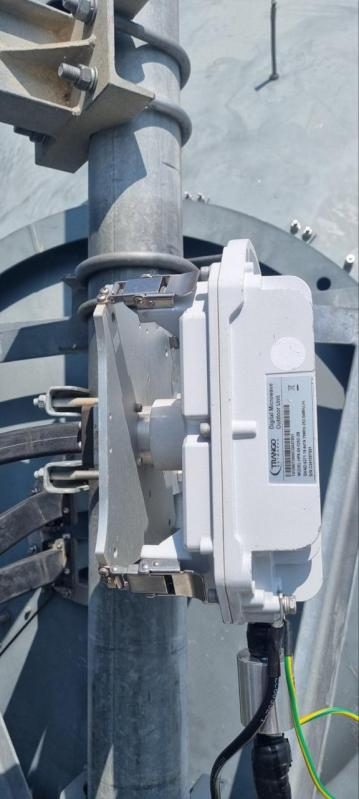

Outdoor radio unit on its mount
Outdoor radio unit on its mount

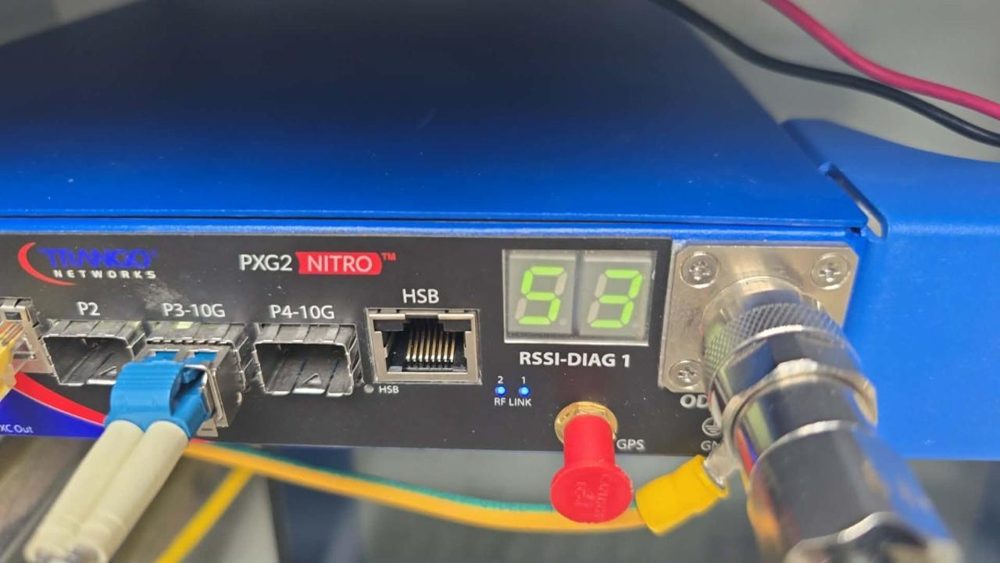

Indoor unit during commissioning tests
Indoor unit during commissioning tests

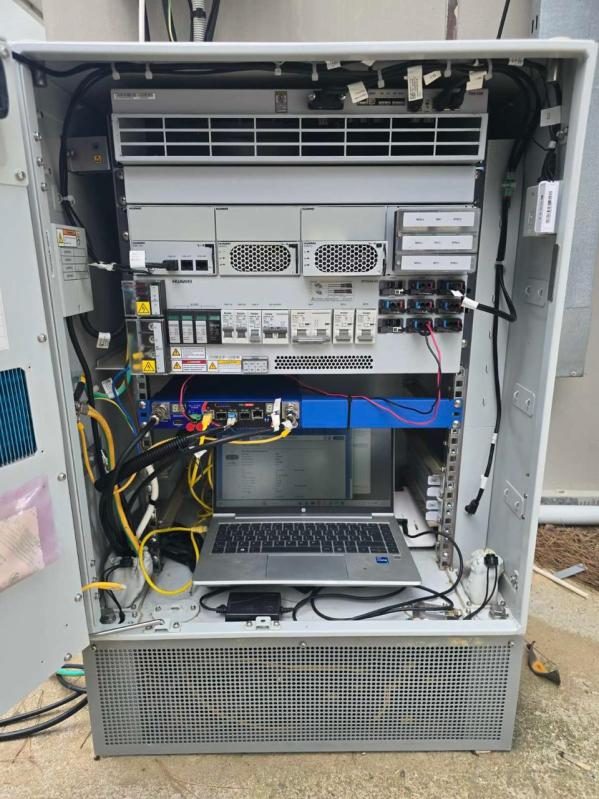

Equipment cabinet and testing
Equipment cabinet and testing

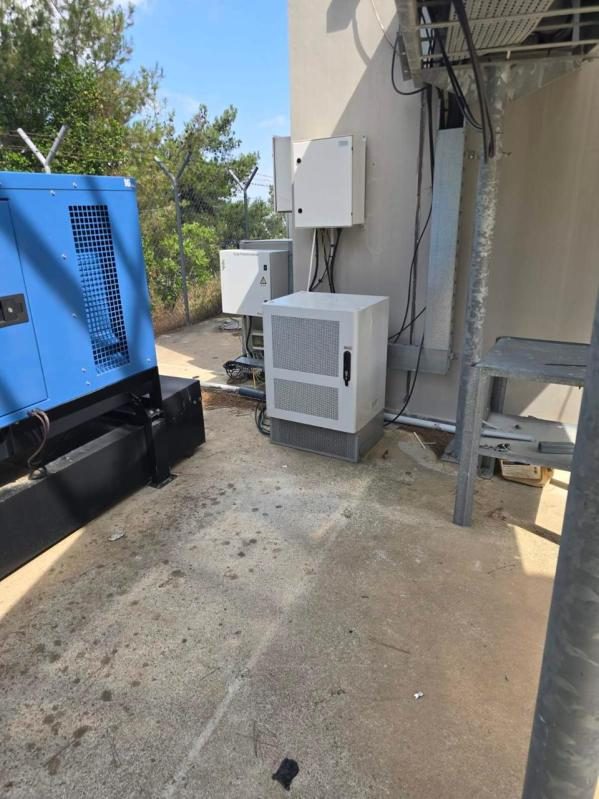

Site with outdoor cabinet and backup generator
Site with outdoor cabinet and backup generator

From path study to 24/7 operation

  1. 1

    Path and propagation study

    Line of sight, earth curvature, sea reflections and fading margins, with antenna sizes and heights chosen for the distance.

  2. 2

    Licences and permits

    Frequencies, tower access and local approvals handled on both sides of the link.

  3. 3

    Towers and site works

    Existing towers where possible, or new masts and poles, with power, cabinets and backup generators.

  4. 4

    Installation and alignment

    Antennas, radios and cabling installed and precisely aligned by LiveTelco teams.

  5. 5

    Commissioning

    End-to-end tests of received levels, both radio paths, multipath mitigation and throughput before handover.

  6. 6

    24/7 NOC and maintenance

    Continuous monitoring, ticketing with escalation, and preventive and corrective maintenance.

Extend the link

  • Local loop and bandwidth on demand at each end
  • Fibre from the microwave site to any point required
  • LEO satellite terminals as an additional backup path
  • Premium security and backup power at the sites
